VSV stage — vane proportion variants
The same mechanism (one-piece carrier ring, pressed bushings, spindle-mounted cambered vanes, lever + pin + bearing ball on a unison ring) rebuilt from DESIGN overrides. The shipped stage puts a 25 mm chord on an 81 mm pitch — solidity 0.3 where a real compressor stator runs 1.0–1.4 — so the vanes read as pegs.

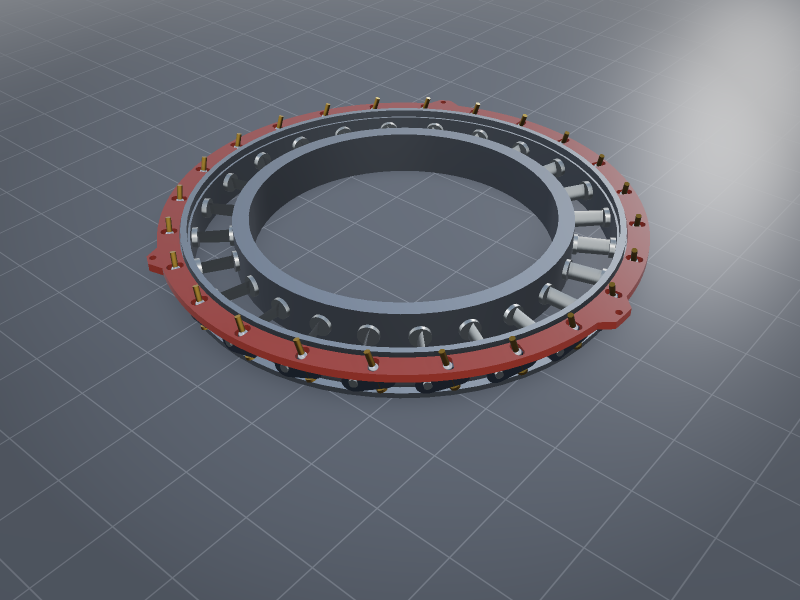

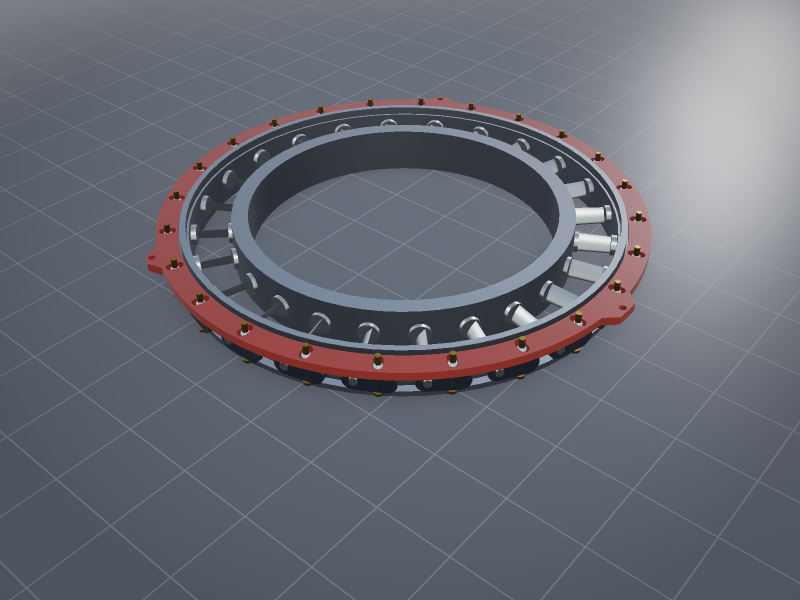

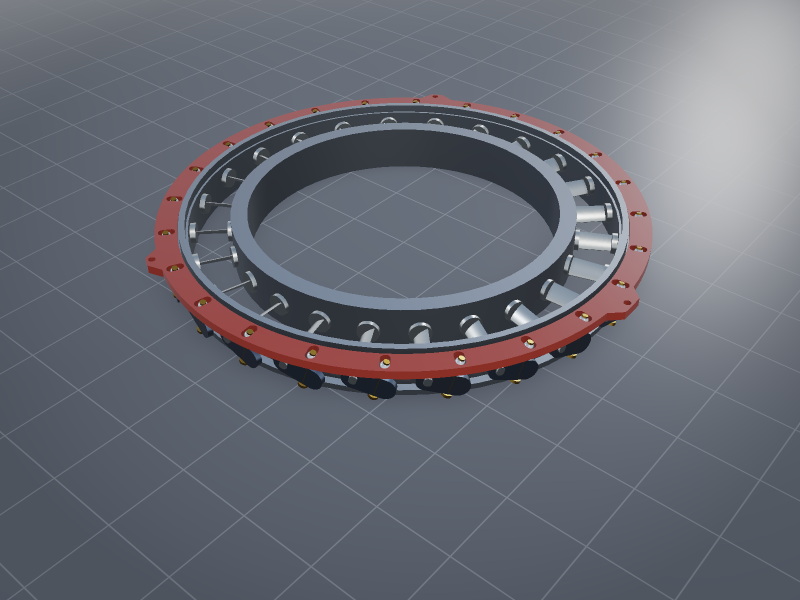

Baseline (shipped)
as shipped — hub/tip 0.81, solidity 0.31
vsv_baseline.glb · vsv_baseline_open.glb · vsv_baseline_mid.glb · vsv_baseline_closed.glb

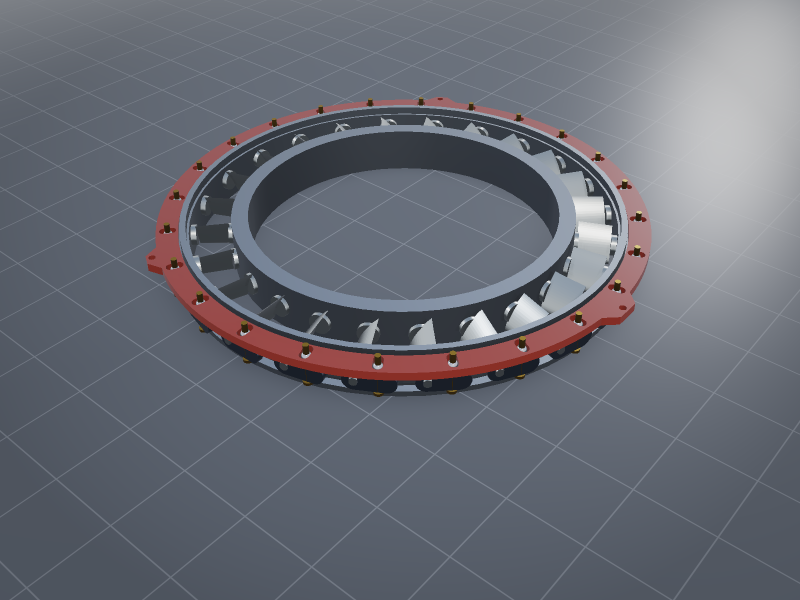

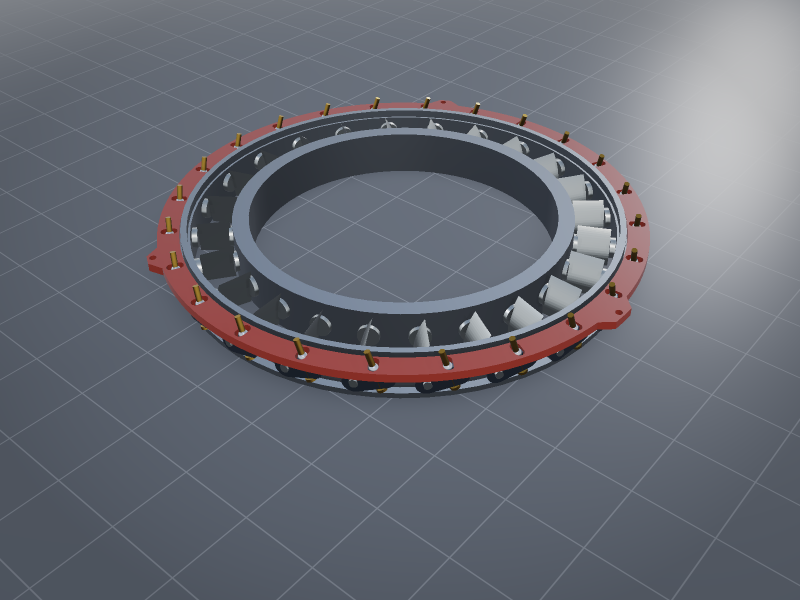

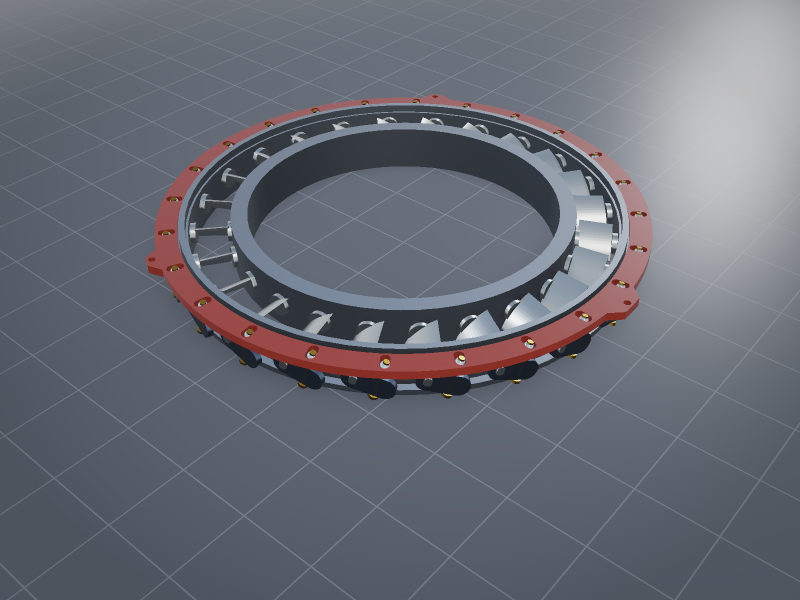

Rear-stage annulus, real chord
same Ø500 hub / Ø620 casing, chord 2.3×: solidity ~0.8, AR ~1
vsv_rear_stage.glb · vsv_rear_stage_open.glb · vsv_rear_stage_mid.glb · vsv_rear_stage_closed.glb

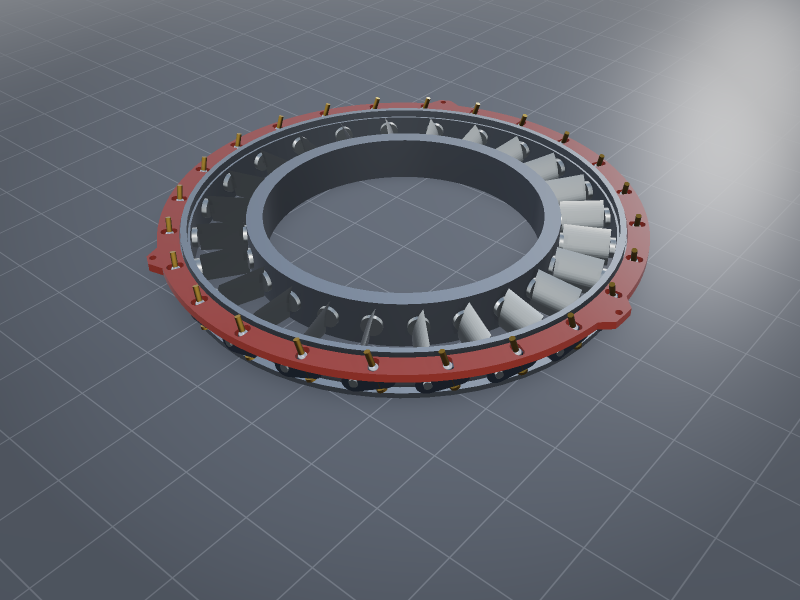

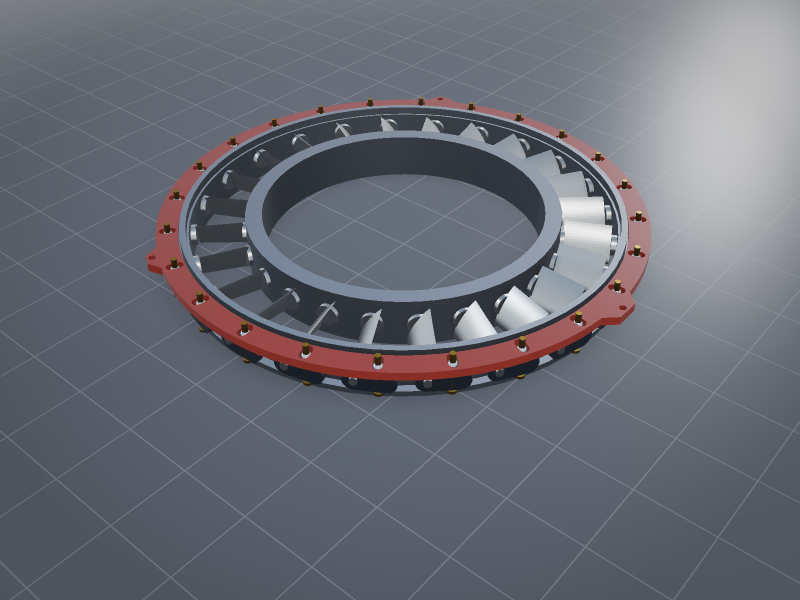

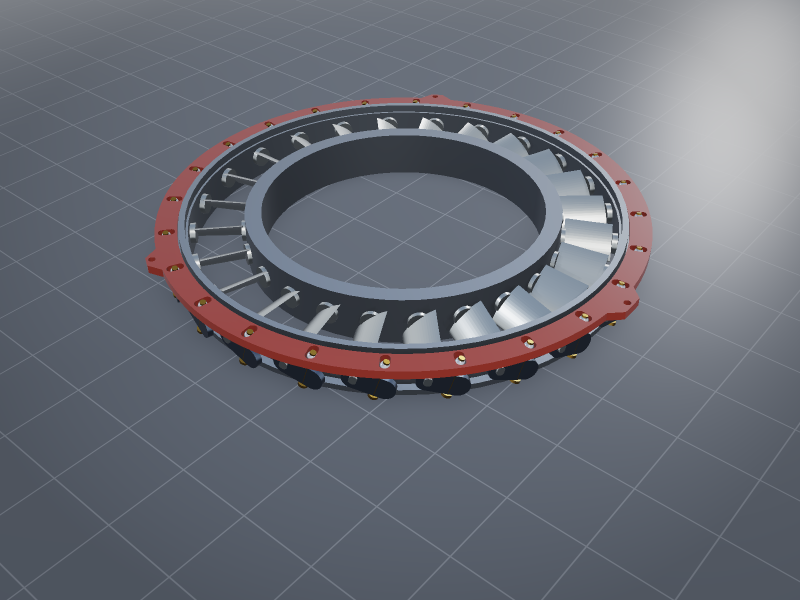

Mid-stage: taller annulus
hub/tip 0.74 (80 mm span), 24 vanes, solidity ~0.85, AR ~1.3
vsv_mid_stage.glb · vsv_mid_stage_open.glb · vsv_mid_stage_mid.glb · vsv_mid_stage_closed.glb

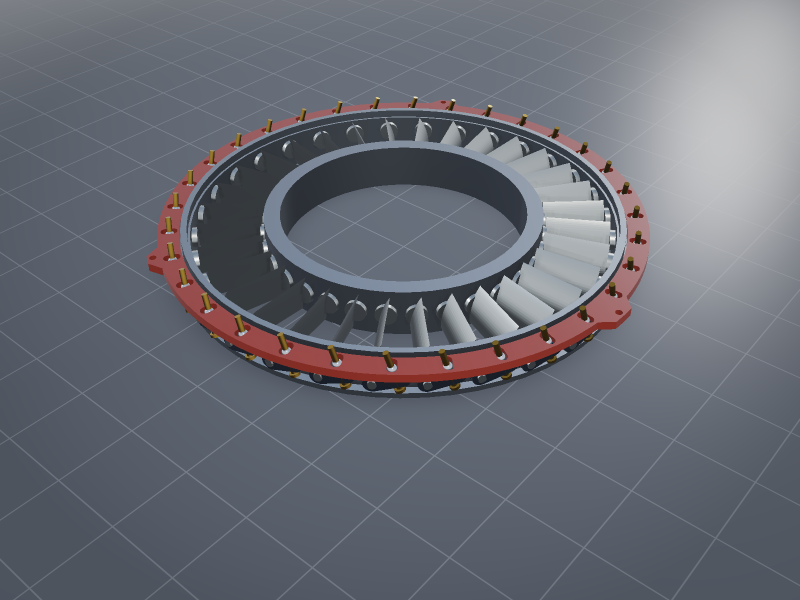

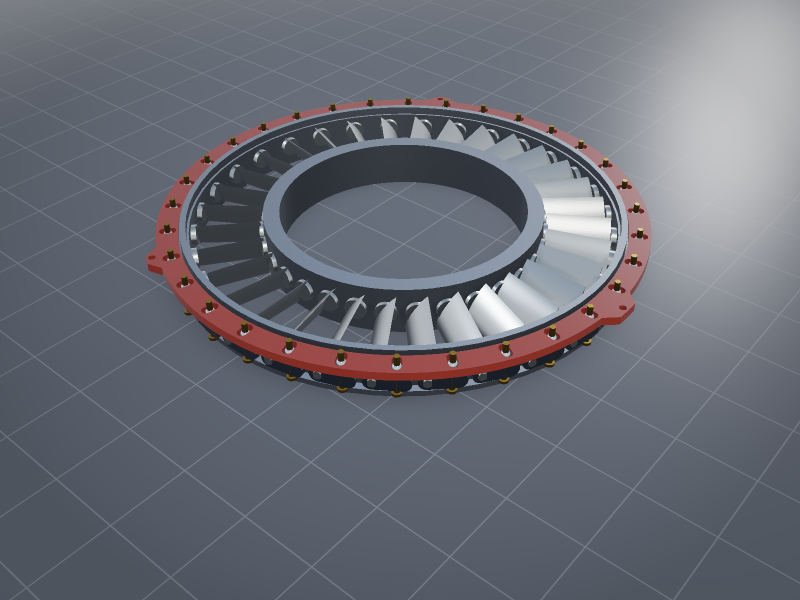

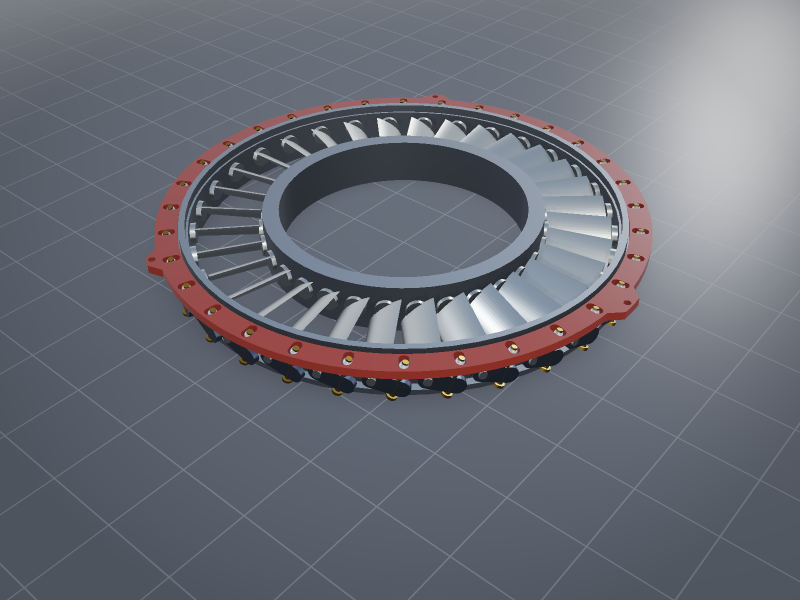

Front-stage: hub/tip 0.66, 32 vanes
hub/tip 0.66 (105 mm span), 32 vanes, solidity ~1.15, AR ~1.8 — textbook VSV stage
vsv_front_stage.glb · vsv_front_stage_open.glb · vsv_front_stage_mid.glb · vsv_front_stage_closed.glb
| Baseline (shipped) | Rear-stage annulus, real chord | Mid-stage: taller annulus | Front-stage: hub/tip 0.66, 32 vanes | realistic band | |
|---|---|---|---|---|---|
| Vanes | 24 | 24 | 24 | 32 | |
| Hub / tip radius | 250 / 310 mm | 250 / 310 mm | 230 / 310 mm | 205 / 310 mm | |
| Hub-to-tip ratio | 0.806 | 0.806 | 0.742 | 0.661 | real VSV stages 0.6–0.75 |
| Span | 60 mm | 60 mm | 80 mm | 105 mm | |
| Chord root / tip | 26 / 24 mm | 60 / 56 mm | 60 / 56 mm | 60 / 56 mm | |
| Pitch at mean radius | 73.3 mm | 73.3 mm | 70.7 mm | 50.6 mm | |
| Solidity (chord / pitch) | 0.34 | 0.79 | 0.82 | 1.15 | real stators 1.0–1.4 |
| Aspect ratio (span / chord) | 2.4 | 1.03 | 1.38 | 1.81 | real VSVs 1.2–2.5 |
| Platform button | Ø30 — chord 26 inside the Ø30 button | Ø30 — airfoil overhangs the Ø30 button | Ø30 — airfoil overhangs the Ø30 button | Ø30 — airfoil overhangs the Ø30 button; lever trimmed to Ø24 hub / 7 mm tip | |
| Bores cut | 2 (smoke run) | 2 (smoke run) | 2 (smoke run) | 2 (smoke run) | |
| Clearance sweep | all mates in band | all mates in band | all mates in band | all mates in band | |
| Mass (Ti-6Al-4V) | 27.86 kg, 147 bodies | 28.8 kg, 147 bodies | 28.36 kg, 147 bodies | 29.19 kg, 195 bodies |
